Test Equipment



Click below for more details.

» Antenna Simulator

» Test Load

» Bird Watt Meters and Elements

» Test Equipment Kit

» Bundle Packages

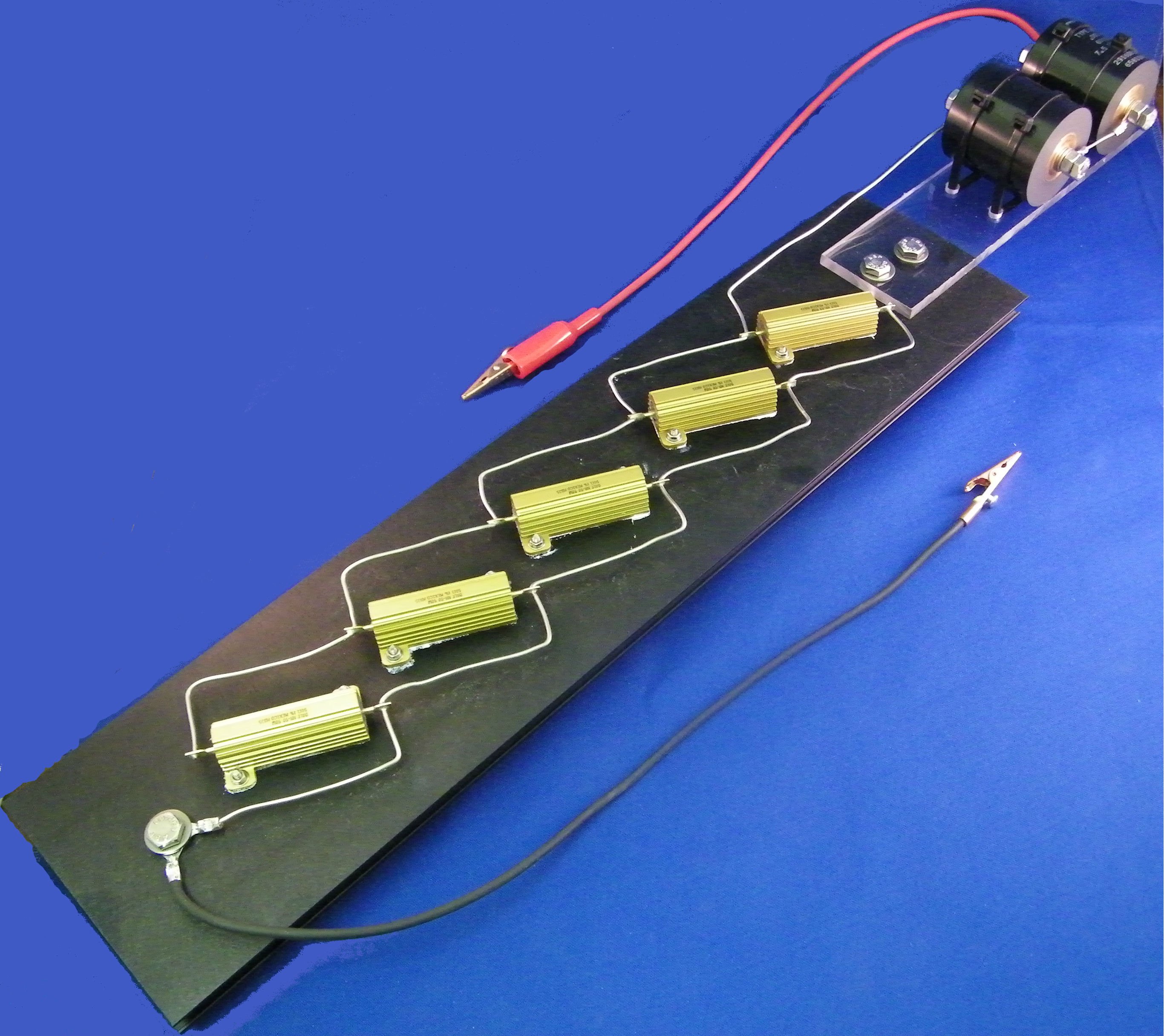

Antenna Simulator



Antenna Simulators are needed to tune the coupler. Southern Avionics sells, and can ship with your NDB, an antenna simulator for use during installation, testing, and maintenance.

Antenna Simulator is used when:

  1. Operating a complete system in a lab environment.
  2. Simulating the antenna in the field to troubleshoot possible ATU or Antenna problems.
dummy_antenna_edit

Test Load

Downloads

Test Loads are highly recommended for installation and testing to protect your valuable equipment.

Southern Avionics sells, and can ship with your NDB, a 50 Ohm non-reactive test load for use during installation, testing, and maintenance.

Test Load is used when:

  1. Operating Transmitter in a lab environment.
  2. Troubleshooting the secondary Transmitter in the field.
200W Test Load

50 Ohm, 200W Test Load

dummy_antenna_high_power-resized-212

50 Ohm, 1000W Test Load

Bird Watt Meters and Elements



Antenna Simulators are needed to tune the coupler. Southern Avionics sells, and can ship with your NDB, an antenna simulator for use during installation, testing, and maintenance.

Antenna Simulator is used when:

  1. Operating a complete system in a lab environment.
  2. Simulating the antenna in the field to troubleshoot possible ATU or Antenna problems.
bird-watt-meter

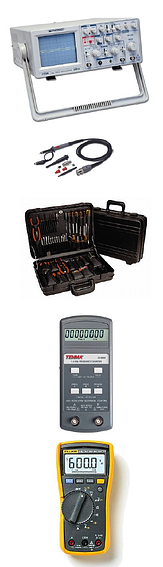

Test Equipment Kit

The Recommended Tool and Test Equipment Kit is used for maintenance and set up of all SAC equipment. It is strongly recommended for use with all SAC transmitter systems.



Features

  • 20 MHz Dual-Trace Oscilloscope
  • High Bandwidth Oscilloscope Probe
  • Technician’s Hand Tools
  • Hand Held Frequency Counter
  • Multimeter

Downloads

test-equipment-kit

Bundle Packages

Tell The Reader More

Click below for more details on our Antenna Simulator, Test load, and Watt meter Bundles. Each of these items can be purchased individually or conveniently bundled as a package.

There are three bundles:
