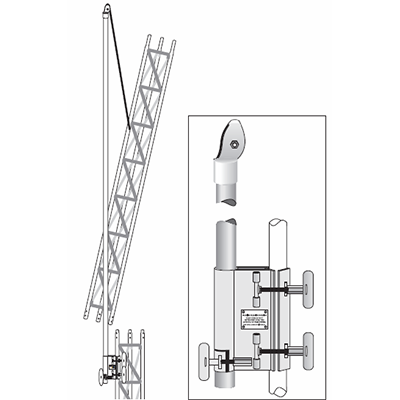

The installation kit is designed for use with RG25 Symmetrical “T” Support Towers and Mast Antennas. It is essential for lifting tower sections during installations.

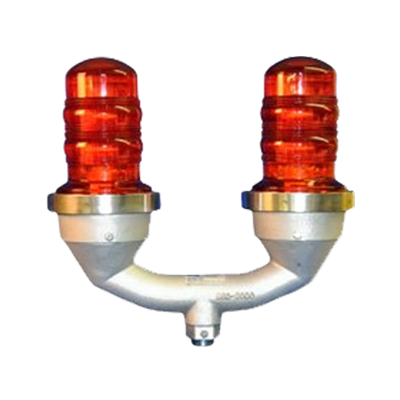

Obstruction Light Kits can be used for Symmetrical “T” Antenna support towers and Mast Antennas. Lights are mounted at the top of the antenna. Dusk to dawn operation. Meets ICAO requirements (Annex 10).
Symmetrical “T” Antenna Kit consists of conduit, wire, 2 dual red obstruction light fixtures and mounting hardware. Available for all heights.
Mast Antenna Kit consists of conduit, wire, 1 dual red obstruction light fixture and mounting hardware. Available for all heights.

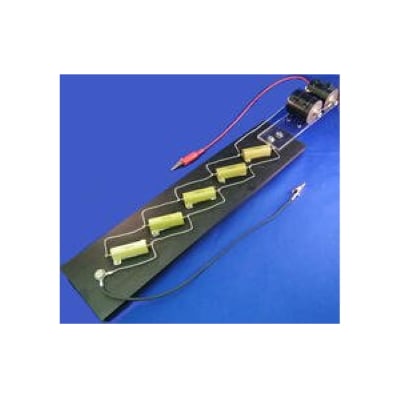

Antenna Simulators are needed to tune the coupler. Southern Avionics sells, and can ship with your NDB, an antenna simulator for use during installation, testing, and maintenance.
Antenna Simulator is used when:
Operating a complete system in a lab environment.
Simulating the antenna in the field to troubleshoot possible ATU or Antenna problems.

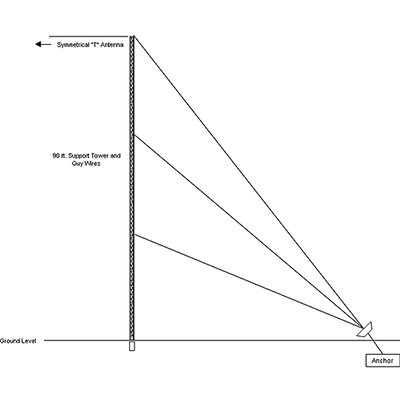

SAC Support Towers are made for use with SAC Symmetrical “T” Antennas.
Supports are made of galvanized steel ROHN 25G 10 ft. (3m) tower sections. Each section is an equilateral triangular lattice design configured with 12.5 in. (32cm) cross bracings electrically-welded to heavy duty 1.25 in. (3.1cm) steel tubing side rails.
